Article prepared by engineers of the official Bodor Laser representative in Ukraine
In serial pipe and profile cutting, the chuck is a critical unit that determines the accuracy of the entire line. Its design directly affects not only clamping speed, but also the volume of expensive metal waste.

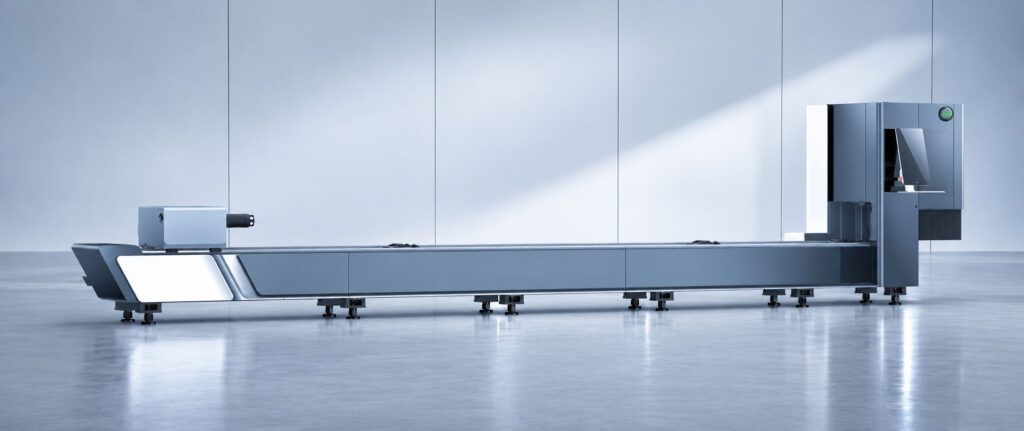

Bodor K-series tube laser cutting machines are equipped with smart pneumatic chucks integrated into the unified BodorThinker CNC digital system. This allows for high-speed cutting of workpieces with minimal operator intervention.
In this article: a technical breakdown of the Bodor K chuck, its impact on production economics, and a material savings calculation example.
Key Engineering Advantages of the Bodor K-Series Chuck
The main task of automation in the K-series is adapting to a specific type of rolled metal without manual retooling or lost time.
Automatic workpiece centering: The system automatically centers round, square, rectangular pipes, and structural profiles (angles, channels), completely eliminating the human factor and operator positioning errors.
2-second clamping: Thanks to the direct cylinder drive system, the K-series chuck fixes the pipe almost instantly. Direct force transmission makes the chuck simple and low-maintenance.
Adaptive clamping force adjustment: The chuck securely holds heavy thick-walled parts while gently clamping thin-walled pipes, preventing deformation or wall crushing.
High fixation dynamics: The pneumatic system dampens micro-vibrations during workpiece rotation, maintaining focal length stability and clean cut edges at high speeds.
Minimizing Tail Waste: Bodor K Economics
One of the key ROI indicators of the Bodor K tube laser cutter is the reduction of the “blind spot” — the remnant tail that cannot be processed inside the chuck.

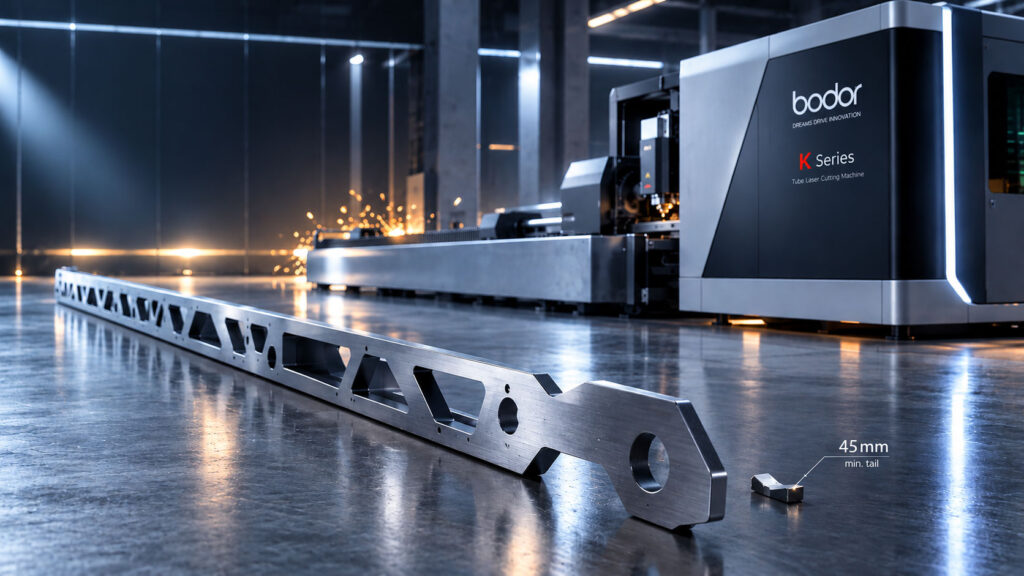

Thanks to the bypass chuck design, the tail remnant in Bodor K is reduced to 45 mm. For comparison, older generation machines with traditional mechanical chucks leave significantly longer tails — making this the primary source of material savings when upgrading to an automatic chuck.
Calculation example (illustrative): If switching to Bodor K reduces the tail by approximately 5–10 cm per pipe, cutting a batch of 1,000 pipes yields tangible savings of usable metal every month. The exact figure depends on your previous equipment’s chuck type and tail length — we can calculate this individually for your product mix.
Ease of Operation and Changeover
Flexibility is critical for small and medium-sized workshops. Bodor K-series machines combined with BodorThinker software and automatic chucks allow switching from one pipe size to another in minutes:
The operator selects the required nesting file.
The system automatically calculates the clamping force for the selected cross-section and wall thickness.
The pneumatic system automatically centers the profile during loading.
This allows comfortable operation for both large production runs and small custom orders without lengthy downtime.
Maintenance and Preserving the 5-Year Warranty in Ukraine
The chuck operates under constant mechanical loads, so adhering to routine maintenance is key to its longevity and maintaining the 5-year factory warranty on your Bodor machine.
As the official Bodor Laser representative in Ukraine, we provide:
Operator training for basic daily care (pressure checks, clearing jaw chips);
Scheduled maintenance with wear inspection and planned seal replacements;
Constant availability of original clamping jaw sets and spare parts in stock in Ukraine.
The maintenance schedule for your Bodor K machine is created by a service engineer during commissioning, tailored to your specific operating conditions.
For enterprises in structural steel, furniture, fencing, and agricultural machinery industries, the Bodor K laser tube cutter with an automatic chuck provides:
High part geometry repeatability;
2-second clamping and minimal tail waste down to 45 mm;
Faster payback through metal savings and zero manual centering effort.
